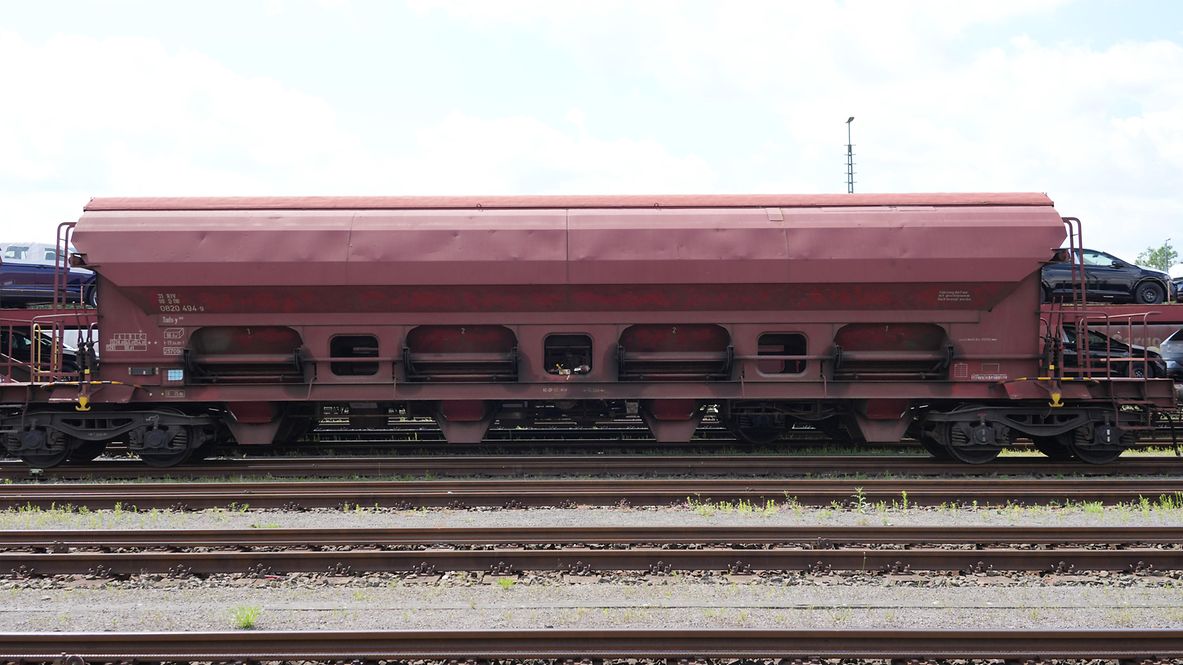

Article: Tads(-y) 958

Covered bulk freight wagons with controlled gravity unloading and four wheelsets. These wagons are suitable for transporting bulk goods that need to be protected from the weather. Example cargoes are dolomite, anthracite, gypsum stone, lime, wood pellets, petroleum coke, kaolin and paraffin. Loading takes place via a one-part lateral sliding roof. They are equipped with a trackside discharge device that allows for controlled unloading of the freight.

Please note: For exact dimensions, please refer to the drawing and the data below.

Technical details

Loading space (m3)

66.5

Inside width of hopper (mm)

1,200

Inside length of hopper (mm)

14,614

Average tare weight (kg)

25,300

Maximum speed (km/h)

120

International usability

RIV

Smallest radius of curvature (m)

75

First year of delivery or year of construction of the oldest wagons at this time

1976

Parking brake

With and without parking brake

Brake type

KE-GP

Number of brake cylinders (pcs.)

1

Brake cylinder diameter (mm)

355 (partly 406)

Type of load-proportional braking

Two-stage, mechanical

Buffer type

UIC 526-1, cat. A

Buffer head dimensions (mm)

Avg 450

Automatic coupler

Prepared (telescopic-leg suspension)

Distributor valve type

KE 1adSL

Individual data

Type of draw gear

Non-continuous

Extension spring type

Rubber leaf spring

Minimum tensile force of the extension spring (kN)

400

Width of the swivelling discharge chutes (mm)

476

Clear width of the unloading openings (mm)

670 x 1,700

Distance between centres of the unloading openings (mm)

3,200

Discharge chutes above top of rail, empty (mm)

700, 395

Load limits

Tare weight > 26.5 t ≤ 27.0 t

With and without parking brake

A

B1

B2

C

S

37.0 t

45.0 t

45.0 t

53.0 t

120

00.0 t

00.0 t

00.0 t

00.0 t

Additional information:

The wagons are suitable for transporting all kinds of moisture-sensitive bulk goods, such as salts and fertilisers. The transport of coarse-grained or angular, heavy bulk goods (e.g. gravel, slag, ballast) is not permitted due to possible damage to the inner coating.
The underframe is a welded structure made of rolled steel sections and sheet metal and is welded to the wagon body. The hopper-shaped wagon body consists of four hoppers and is a welded structure. The hoppers are separated by transverse walls and have a slope of 48°. Inside, the wagon body is coated with epoxy resin.

The wagon is emptied via eight individually operable sliding gates. The sliding gates can be locked at 25 mm intervals. There is a fixed and a folding discharge chute under each sliding gate.

Loading is only permitted via the opening roof from above-ground bunkers or using conveyor belts. Loading or unloading using grabs is not permitted.

The wagon is equipped with a single-shell lifting-swivelling roof. When closed, the roof is secured against unintentional shifting. It is not permitted to move the wagon with the roof open.

Cargo residues may only be removed from the loading or unloading lane by lightly _x000B_knocking on the outer container walls with a rubber hammer or by _x000B_using air blow lances in the loading space!

For the operation of the wagons, DV 975/2 must be observed.
