Article: Sahlmmps-t 721
Bogie flat wagon with six wheelsets and loading cradles for coil transport.
The wagon is especially suitable for carrying up to five heavy sheet metal coils that do not need to be protected from the weather.

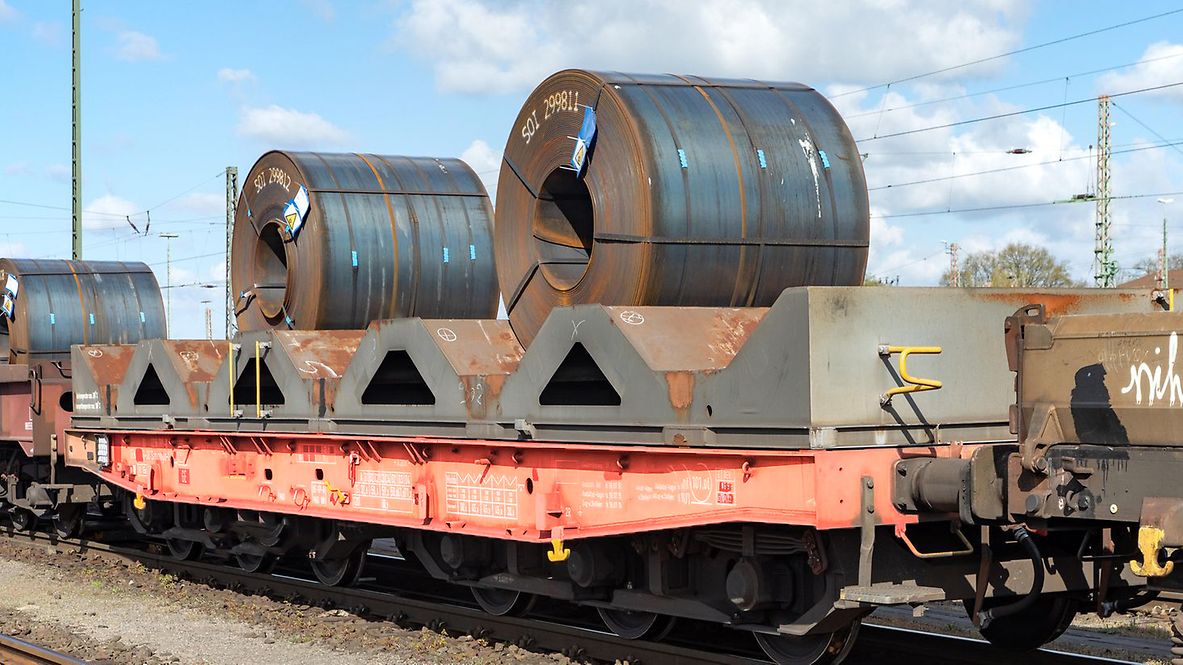

Please note: Type is similar to the wagon in the photo. For exact dimensions, please refer to the drawing and the data below.
Technical details
Loading width (mm) | 2,450 |
Average tare weight (kg) | 34,000 |
Maximum speed (km/h) | 120 |
International usability | TEN GE |
Smallest radius of curvature (m) | 75 |
First year of delivery or year of construction of the oldest wagons at this time | 2010 |
Parking brake | With and without parking brake |
Brake type | KE-GP-A (K) |
Number of brake cylinders (pcs.) | 2 |
Brake cylinder diameter (mm) | 300 |
Type of load-proportional braking | Stepless, independent, pneumatic |
Buffer type | Category C |
Buffer type: end force (kN) | 750 |
Buffer type: stroke (mm) | 105 |
Buffer head dimensions (mm) | 450 x 340 |
Automatic coupler | Prepared |
Individual data
Draw gear type | RG 20-160 |
Screw coupler, reinforced (kN) | 1,350 |
Type of the control apparatus | KERdv-159/1KSLn, KERdv-159/1KSLn KERdv-159/1KSLn 2 relay valves KERdv-159/1KSLn 1 control valve |
Draw gear, reinforced (kN) | 1,500 |
Load limits
Average tare weight 34.00 t
With and without parking brake
A | B1 | B2 | C2 | C3/C4 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|
S | 32.0 t | 32.0 t | 50.0 t | 50.0 t | 59.0 t | 50.0 t | 61.0 t | 71.0 t |
120 | 00.0 t | 00.0 t | 00.0 t | 00.0 t | 00.0 t | 00.0 t | 00.0 t | 00.0 t |
DB | CE |
|---|---|
100 | 71.5 t |
Additional information:
The wagon has a removable stillage with safety equipment (spring-loaded discs) for coils and is mainly used to transport hot-rolled, unpickled steel coils with an outer diameter of 900 to 2,200 mm.
The stillage is fixed in four sockets in the floor of the wagon by spigots.
The design of the stillage allows coils with temperatures of up to 240°C to be loaded.
Some of the wagons are equipped with a parking brake that can be operated from the ground.
