Article: Rnoos type 644

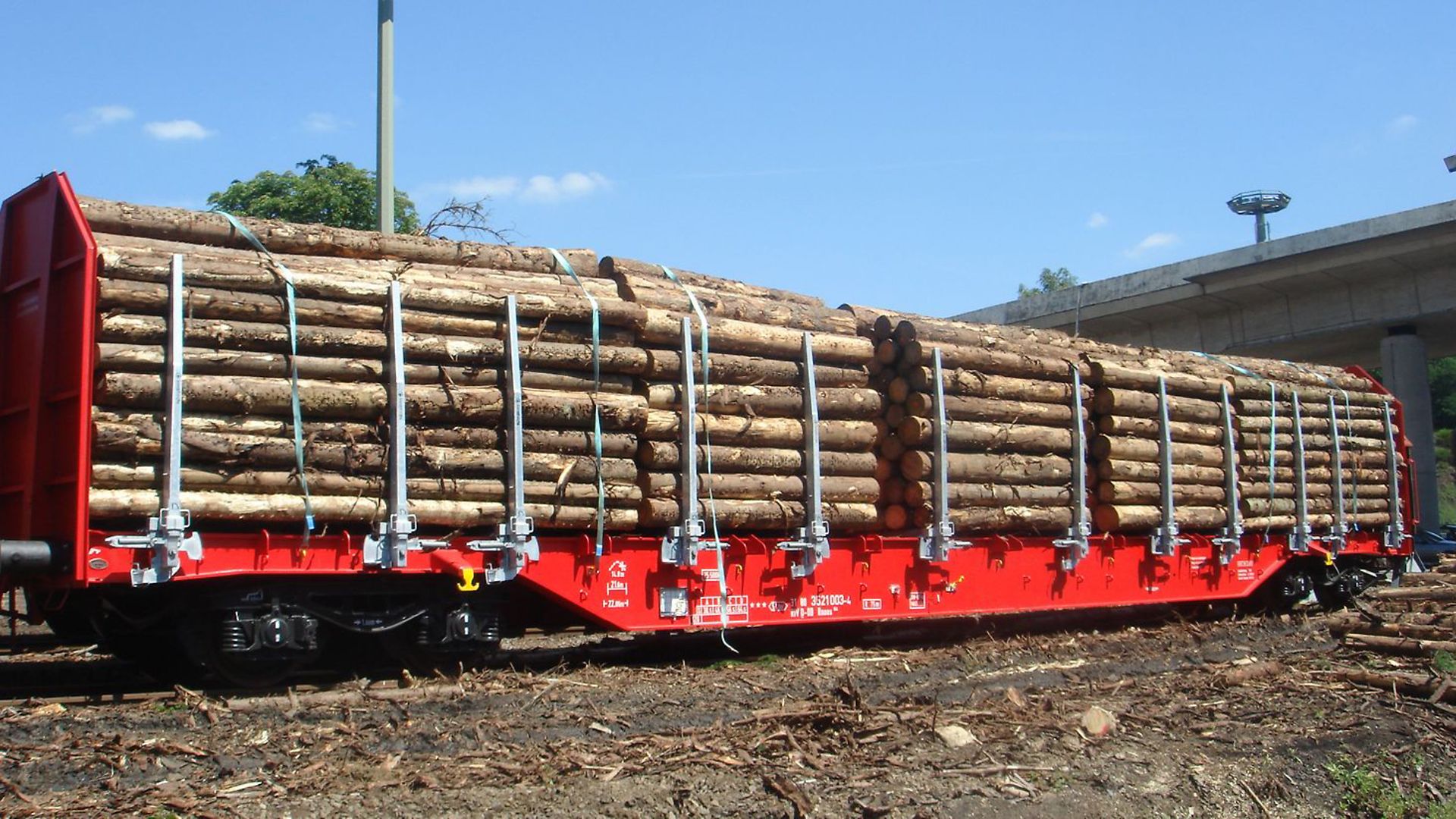

The Rnoos wagon is particularly suitable for logs of 3 to 5 m in length and for reloading with square-sawn timber.
At each end of the wagon there is a 2,670 mm wide end wall, which is designed for a load according to ERRI B12 RP 17.
Please note: For exact dimensions, please refer to the drawing and the data below.
Technical details
Loading length (mm) | 21,600 |
Loading width (mm) | 2,650 |
Loading height (mm) | 2,730 |
Loading area (m2) | Approx. 57 |
Average tare weight (kg) | 26,500 |
Maximum speed (km/h) | 120 |
Smallest radius of curvature (m) | 75 |
Individual data
Drawing and type of the draw gear | 2Fwg 000.0.05.017.150 (type ST 9-2/160 G) |
Carrying capacity | 63.5 t |
Axle load | 22.5 t |
Floor | Checker plate |
Stanchion height (mm) | 2,000 |
Swivel stanchion systems type INNOFREIGHT/ORME | 12 pcs. |
Stanchion load in transverse direction | 70 kN (at a height of 1 m) |
Auxiliary bolsters to protect the floor | 9 pcs. |
Tensioning devices in longitudinal direction on one side of the wagon | 9 pcs. |
Miscellaneous | Quick folding, operation from the ground |
Load limits
Concentrated loads
Average tare weight 26.5 t
A | B | C | D | ||
|---|---|---|---|---|---|
S | 37.5 t | 45.5 t | 55.5 t | 63.5 t | |
120 |
Additional panel
DB | CM |
|---|---|
100 | 57.5 t |
Additional information:
The wagons are equipped with two different swivel stanchion systems (Innofreight and ORME).
The tensioning device consists of a belt winch, a lashing strap (60 kN breaking load, 9.0 m long with triangle) and a lashing hook. In addition, an actuating lever for tensioning the straps is mounted on each wagon (in the area of the solebars).
All data provided without any guarantee of correctness or completeness.
