Article: Rmms 663
Bogie flat wagon with four wheelsets, with drop ends, without side walls and with stanchions.
With a loading length of 12.80 m, these wagons are used for transporting heavy, long products from the iron and steel industry.

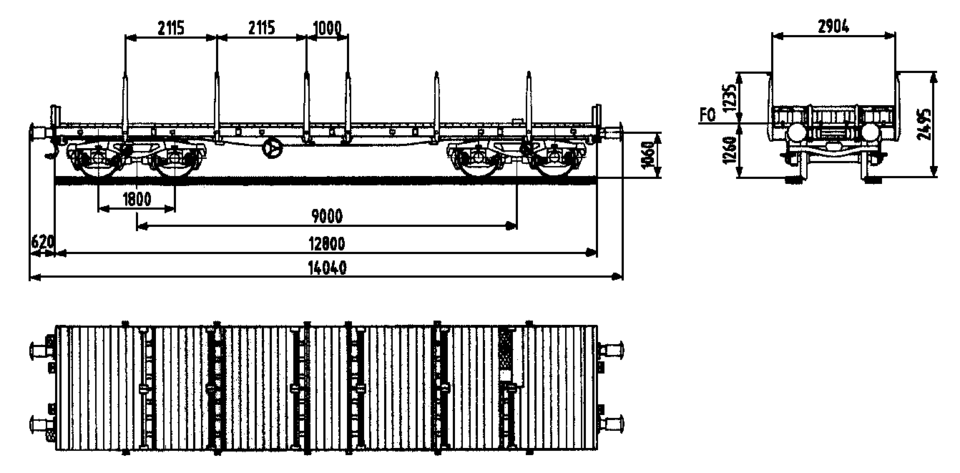

Please note: Type is similar to the wagon in the photo. For exact dimensions, please refer to the drawing and the data below.
Technical details
Loading length (mm) | 12,644 |
Loading width (mm) | 2,904 |
Loading height (mm) | 1,235 |
Loading area (m2) | 36.0 |
Average tare weight (kg) | 21,000 |
Maximum speed (km/h) | 120 |
International usability | RIV |
Harmonisation/standardisation | UIC St |
Smallest radius of curvature (m) | 35 |
First year of delivery or year of construction of the oldest wagons at this time | 1968 |
Parking brake | With and without parking brake |
Brake type | KE-GP |
Number of brake cylinders (pcs.) | 1 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Two-stage, mechanical, to be changed over manually |
Buffer type: end force (kN) | 590 |
Buffer type: stroke (mm) | 105 |
Buffer head dimensions (mm) | Avg 450 |
Automatic coupler | Prepared |
Distributor valve type | KE 1adSL |
Individual data
Height of bolster above top of floor (mm) | 70 |
Load limits
Average tare weight 21.0 t
With and without parking brake
A | B1 | B2 | C | ||
|---|---|---|---|---|---|
S | 43.0 t | 49.0 t | 51.0 t | 59.0 t |
Concentrated loads
m | Spread over the support length | On two baseplates | |
|---|---|---|---|
a-a | 2 | 35.0 | 40.0 |
b-b | 3 | 37.0 | 47.0 |
c-c | 5 | 43.0 | 56.0 |
d-d | 7 | 51.0 | 56.0 |
e-e | 9 | 59.0 | 59.0 |
f-f | 12 | 59.0 | 24.0 |
Additional information:
The wagon is used with folded-out bolsters for transporting heavy rolled steel sections and other bulky and heavy goods.
With the bolsters folded in, i.e. with a level loading area, it is also suitable for transporting heavy tracked vehicles.
Two lowerable stanchions are positioned in front of each of the folding end walls. The wagon can be driven with the end walls folded down and the stanchions lowered. The height of the folded end walls above top of floor is 38 mm. The wagon has six swivel stanchions on each of the long sides. The floor is made of pine planks measuring 70 x 180 mm. It can take a wheel load of 5.0 t. There are six split, folding bolsters built into the floor.
Some of the wagons are equipped with a parking brake that can be operated from the ground.
All data provided without any guarantee of correctness or completeness.
