Article: Res 687

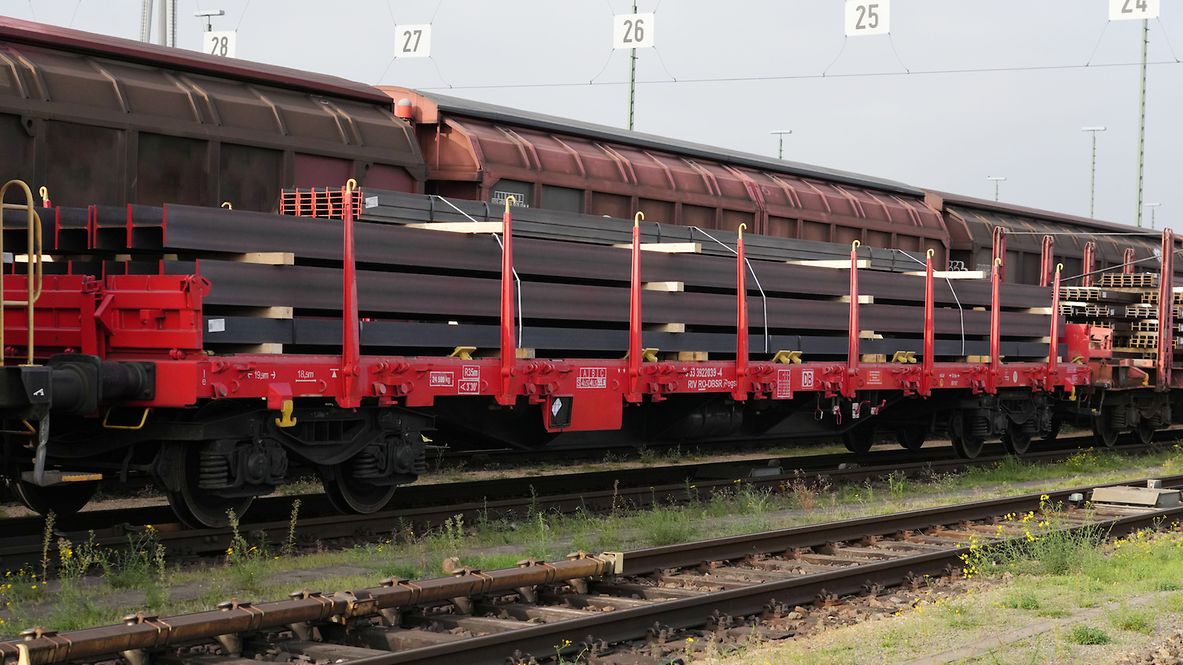

Bogie flat wagon with four wheelsets, with drop sides, drop ends and stanchions.
With a loading length of 18.50 m, these wagons are used for transporting heavy, long products from the iron and steel industry, as well as prefabricated parts, wood, small track components, semi-finished products, stones, vehicles, etc.
For these transports, we offer wagons in various configurations.
Technical details
Loading length (mm) | 18,500 |
Loading width (mm) | 2,650 |
Loading area (m2) | 49.0 |
Average tare weight (kg) | 23,700 |
Maximum speed (km/h) | 120 |
International usability | RIV |
Harmonisation/standardisation | UIC St |
Smallest radius of curvature (m) | 35 |
First year of delivery or year of construction of the oldest wagons at this time | 1979 |
Parking brake | With and without parking brake |
Brake type | KE-GP |
Number of brake cylinders (pcs.) | 1 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Two-stage, mechanical, to be changed over manually |
Buffer type: end force (kN) | 590 |
Buffer type: stroke (mm) | 105 |
Buffer head dimensions (mm) | 450 x 340 |
Automatic coupler | Prepared |
Distributor valve type | KE 1adSL |
Load limits
Average tare weight 23.7 t
With and without parking brake
A | B1 | B2 | C | ||
|---|---|---|---|---|---|
S | 40.0 t | 48.0 t | 48.0 t | 56.0 t |
Concentrated loads
m | Spread over the support length | On two baseplates | |
|---|---|---|---|
a-a | 2.0 | 32.0 | 33.0 |
b-b | 5.0 | 35.0 | 38.0 |
c-c | 9.0 | 36.0 | 44.0 |
d-d | 15.0 | 44.0 | 56.0 |
e-e | 18 | 56.0 | 24.0 |
Additional information:
The wagon is used for transporting heavy rolled sections and other bulky and heavy goods as well as vehicles and bulk goods.
It does not have any folding bolsters. Because of its low floor height, it can also be used to transport containers.
Two lowerable stanchions are positioned in front of each of the folding end walls. The wagon can be driven with the end walls folded down and the stanchions lowered. The height of the folded-down drop ends above top of floor is 38 mm. The wagon has eight swivel stanchions on each of the long sides and a total of 18 lowerable lashing devices in the floor. With the side walls folded down, the wagon can only be transported with an infringement of the loading gauge. The floor is made of pine planks measuring 48 x 180 mm. It can take a wheel load of 5.0 t. Some of the wagons are equipped with a parking brake that can be operated from the ground.
All data provided without any guarantee of correctness or completeness.
