Article: R(p)s 689

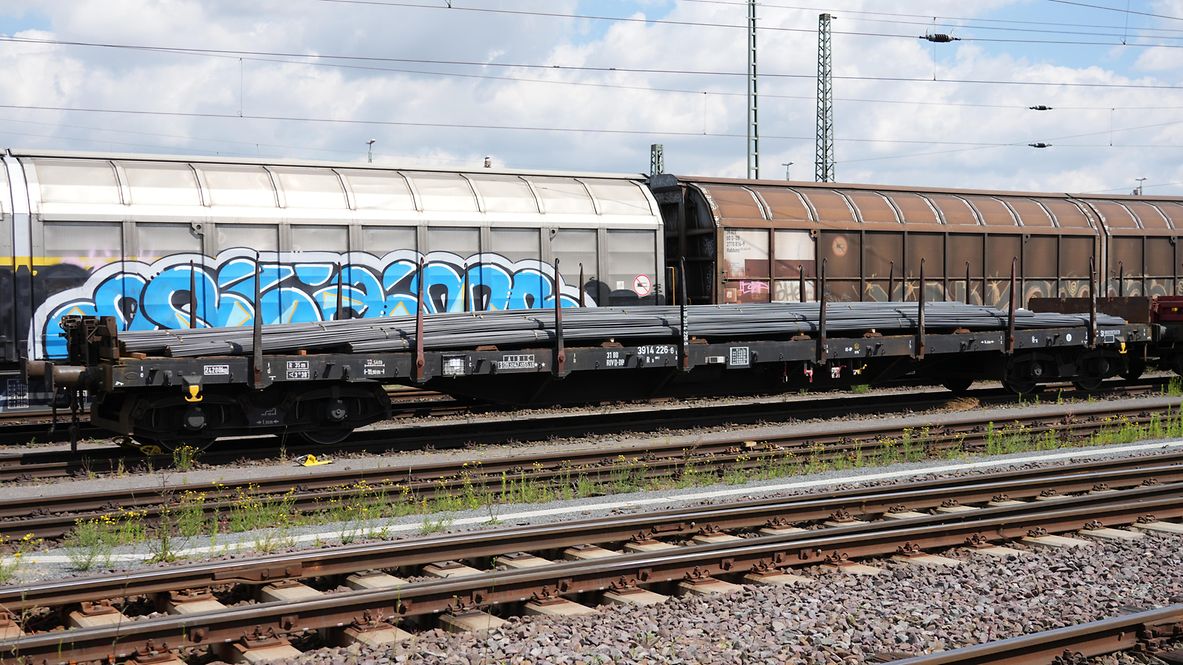

Bogie flat wagon with four wheelsets, stanchions, with and without drop ends and folding bolsters, but without drop sides.
With a loading length of 18.50 m, these wagons are used for transporting heavy, long products from the iron and steel industry, as well as prefabricated parts, wood, small track components, semi-finished products, vehicles, etc.
With the bolsters folded in, i.e. with a level loading area, it is also suitable for transporting heavy tracked vehicles.
Technical details
Loading length (mm) | 18,500 |
Loading width (mm) | 2,770 |
Loading height (mm) | 1,275 |
Loading area (m2) | 51.3 |
Average tare weight (kg) | 23,625 |
Maximum speed (km/h) | 120 |
International usability | RIV |
Harmonisation/standardisation | UIC St |
Smallest radius of curvature (m) | 35 |
First year of delivery or year of construction of the oldest wagons at this time | 1976 |
Parking brake | Without parking brake |
Brake type | KE-GP |
Number of brake cylinders (pcs.) | 1 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Two-stage, mechanical, to be changed over manually |
Buffer type: end force (kN) | 590 |
Buffer type: stroke (mm) | 105 |
Buffer head dimensions (mm) | Avg 450 |
Automatic coupler | Prepared |
Distributor valve type | KE 1a/3.8 SL |
Individual data
Height of bolster above top of floor (mm) | 70 |
Load limits
Tare weight > 23.5 t ≤ 24.0 t
Without parking brake
A | B1 | B2 | C | ||
|---|---|---|---|---|---|
S | 40.0 t | 48.0 t | 48.0 t | 56.0 t |
Concentrated loads
m | Spread over the support length | On two baseplates | |
|---|---|---|---|
a-a | 2.0 | 32.0 | 33.0 |
b-b | 5.0 | 35.0 | 38.0 |
c-c | 9.0 | 36.0 | 44.0 |
d-d | 15.0 | 44.0 | 56.0 |
e-e | 18.0 | 56.0 | 24.0 |
Additional information:
The wagon is used with folded-out bolsters for transporting heavy rolled steel sections and other bulky and heavy goods.
With the bolsters folded in, i.e. with a level loading area, it is also suitable for transporting heavy tracked vehicles.
Two lowerable stanchions are positioned in front of each of the folding drop ends. The wagon can be driven with the drop ends folded down and the stanchions lowered. The height of the folded-down drop ends above top of floor is 38 mm. There are eight swivel stanchions on each long side of the wagon.
The floor is made of pine planks measuring 70 x 180 mm. It can take a wheel load of 5.0 t. There are ten split bolsters built into the floor.
