Hbillns 303

Freight wagon with two wheelsets, two-part aluminium sliding walls and six lockable partitions.

For delicate loads: these high-capacity wagons are equipped with sliding walls that can be moved by a single person. When open, the entire wagon loading area can be accessed from both sides.

This allows the wagon to be loaded and unloaded using forklift trucks either from a platform or from ground level. This wagon is fitted with "lockable partition" transport guards that enable different kinds of highly sensitive goods to be properly protected when being transported. The transport guards allow the interior of the wagon to be divided up into individual compartments. The loading area and loading space are reduced proportionally to the size of the built-in transport guard. The lockable partitions engage with rows of holes set into the wagon floor and on the top chord.

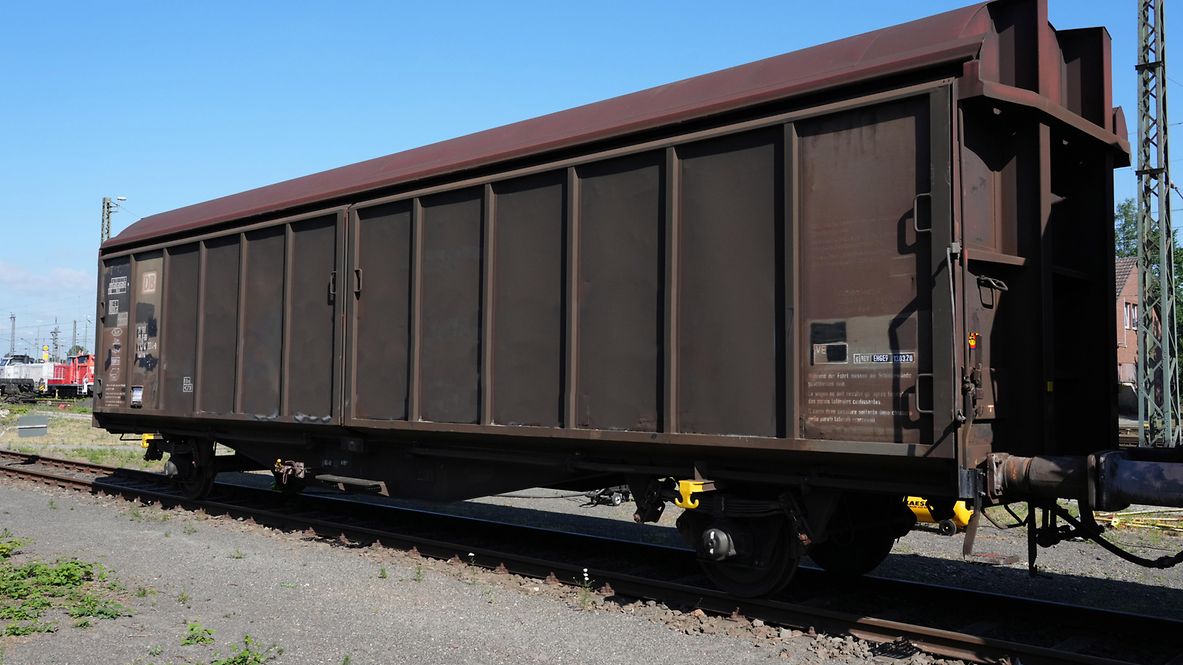

Please note: The type is similar to the wagon in the photo. For exact dimensions, please refer to the drawing and the data below.

Additional information:

The wagon is intended for use in conjunction with "lockable partition" transport guards to transport the following goods:

• Goods that cannot be loaded compactly.
• Goods that, although suitable for compact loading in terms of their external shape, cannot withstand the pressure caused by the inertial force of the goods stacked further to the rear during a buffing impact.
• Mixed loads of individual pieces of different shapes, weights and sensitivities.
• Goods at risk of tipping
• High density goods that can only be stacked to a low height.

From a loading point of view, this type of wagon has advantages, especially for customers, due to the large side wall opening and the large clearance:

• Easy loading with forklift trucks.
• Large loading height.

The floor consists of 45 mm thick pine planks and is approved for driving on with forklift trucks for a maximum load of 2.2 t per front wheel.

All data provided without any guarantee of correctness or completeness.
