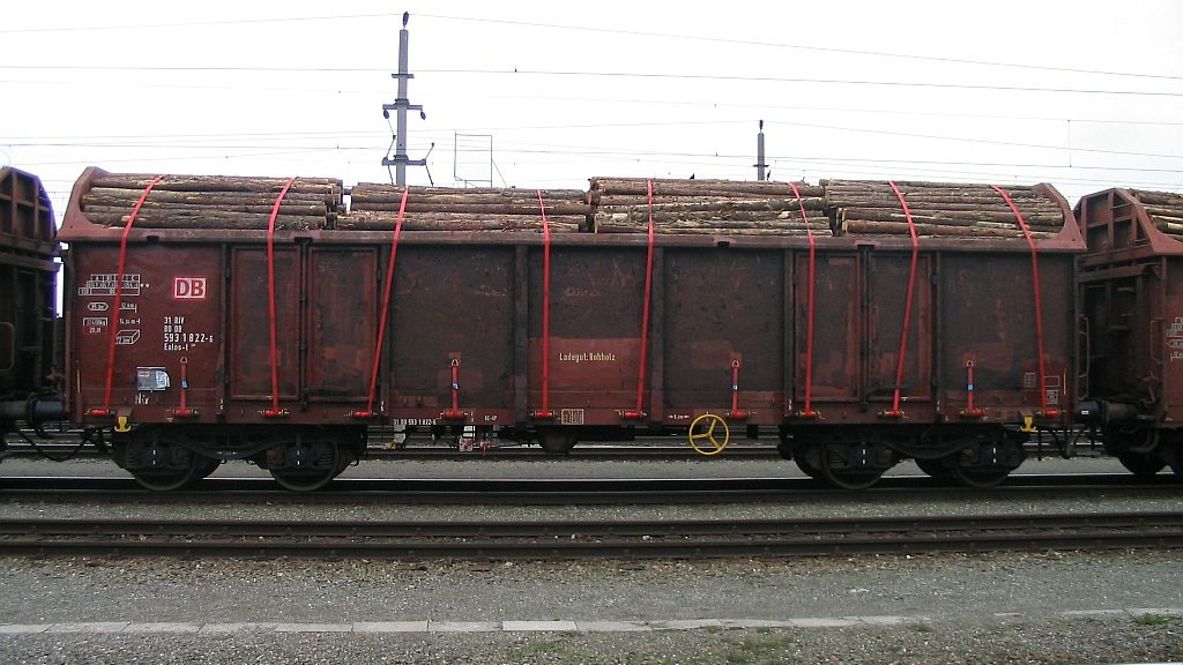

Article: Ealos-t 058
Open freight wagons with four wheelsets. These bogie freight wagons have a large loading space and are equipped with a continuous top chord, two double doors on each side and wooden or steel flooring.
They are suitable for transporting a wide variety of goods, especially in packaged form (bales, packages, barrels, logs, rod iron, etc.). Rings attached to the outside of the wagon enable sheets or tarpaulin covers to be fastened to prevent the freight from getting wet or to prevent wind losses from bulk goods.
Technical details
Loading length (mm) | 12,800 |
Loading width (mm) | 2,760 |
Loading height (mm) | 2,100 |
Loading area (m2) | 35.0 |
Loading space (m3) | 72.0 |
Inside width of hopper (mm) | 2,760 |
Inside length of hopper (mm) | 12,800 |
Average tare weight (kg) | > 21,500 ≤ 24,500 |
Maximum speed (km/h) | 120 |
International usability | RIV |
Smallest radius of curvature (m) | 35 |
First year of delivery or year of construction of the oldest wagons at this time | 1980 |
Brake type | KE-GP |
Number of brake cylinders (pcs.) | 1 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Two-stage, mechanical |
Buffer type | UIC 526-1, cat. A |
Buffer head dimensions (mm) | 450 x 340 |
Automatic coupler | Prepared (telescopic-leg suspension) |
Distributor valve type | KE 1adSL |
Individual data
Side wall door openings: width (mm) | 1,800 |
Side wall door openings: height (mm) | 1,900 |
Load limits
Tare weight > 22.0 t ≤ 22.5 t
With and without parking brake
A | B1 | B2 | C | ||
|---|---|---|---|---|---|
S | 41.5 t | 47.5 t | 49.5 t | 54.5 t | |
120 |
Concentrated loads
m | Spread over the support length | On two baseplates | |
|---|---|---|---|
a-a | 3.0 | 23.0 | 26.0 |
b-b | 5.0 | 27.0 | 30.0 |
c-c | 9.0 | 39.0 | 54.5 |
Additional information:
The freight wagon was created by converting the Eas 066 and is preferred for transporting logs in lengths of 2 to 4 m. The underframe is a welded structure made of sheet metal, rolled steel sections and wide flat steel. The wagon body is designed as a weldment with a continuous cantrail. The upper side straps are connected to each other by two end crossbars. The side walls are reinforced by means of intermediate, corner and door posts. Some of the wagons are equipped with a parking brake that can be operated from the ground on both sides of the wagon. The height of the end walls has been increased to profile G1 for better capacity utilisation. The end flaps have been welded shut and reinforced by webs between the cantrail and the corner posts. For additional load securing when loading over the side walls, there are 12 indirect fastening devices on the wagon (tensioning winches with strap, 40 kN nominal breaking force) and lashing rings for securing or covering the load.
All data provided without any guarantee of correctness or completeness.
