Article: Sa(l)mmnps 706.0
Bogie flat wagon with six wheelsets, without side and end walls, with and without stanchions. The wagon is mainly intended for transporting slabs.

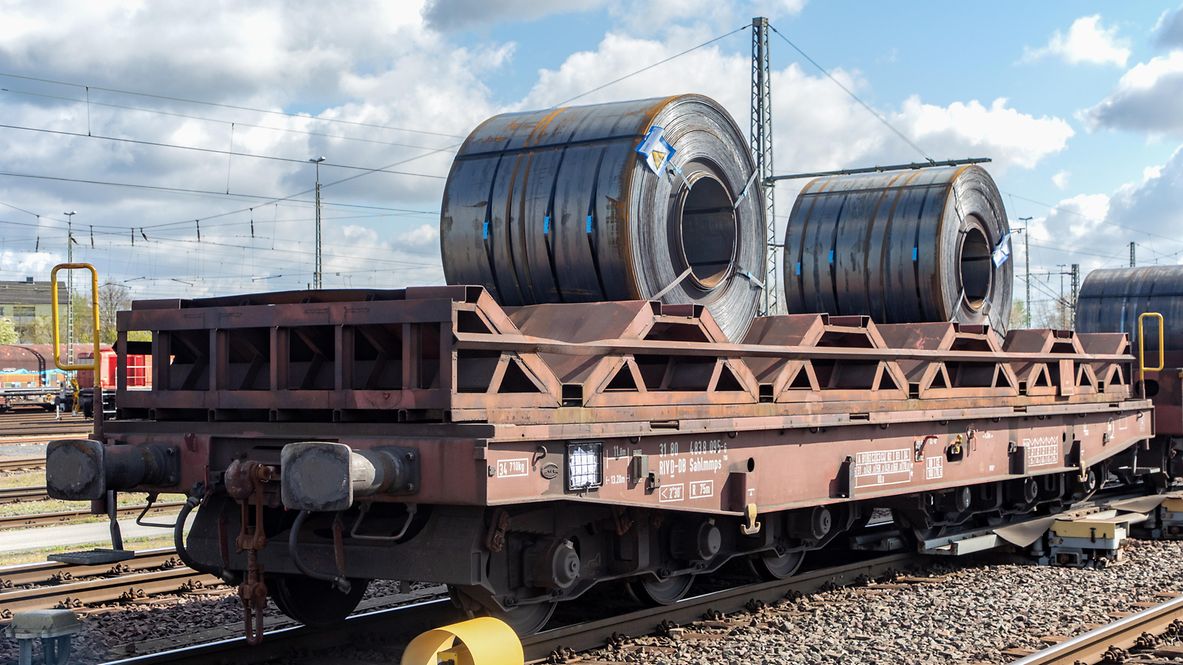

Please note: Type is similar to the wagon in the photo. For exact dimensions, please refer to the drawing and the data below.
Technical details
Loading length (mm) | 11,804 |
Loading width (mm) | 2,580 |
Loading area (m2) | 36.0 |
Average tare weight (kg) | 28,000 |
Maximum speed (km/h) | 120 |
International usability | RIV |
Smallest radius of curvature (m) | 75 |
First year of delivery | 1987 |
Parking brake | Without parking brake |
Brake type | KE-GP |
Number of brake cylinders (pcs.) | 2 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Two-stage, pneumatic, to be changed over manually |
Buffer type: end force (kN) | 590 |
Buffer type: stroke (mm) | 105 |
Buffer head dimensions (mm) | 450 x 340 |
Automatic coupler | Prepared |
Distributor valve type | KE Rd-KSLn/DO1 |
Individual data
Stanchion height (mm) | 1,250 |
Ferry ramp angle | 2° 30' |
Loading width without stanchions (mm) | 3,050 (on 8,660 mm loading length) |
Loading width in cradles: (mm) | 2500 |
Load limits
Tare weight > 33.5 t ≤ 34.0 t
Without parking brake
A | B1 | B2 | C2 | C3 | C4 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|---|
S | 38.0 t | 38.0 t | 56.0 t | 56.0 t | 65.0 t | 65.0 t | 60.0 t | 67.0 t | 71.0 t |
120 |
DB | CE |
|---|---|
100 | 77.5 t |
Concentrated loads
m | Spread over the support length | On two baseplates | |
|---|---|---|---|
a-a | 2.0 | 72.0 | 101.0 |
b-b | 3.0 | 90.0 | 107.0 |
c-c | 5.0 | 107.0 | 107.0 |
d-d | 8.5 | 107.0 | 78.0 |
Additional information:
The wagon is mainly used to transport hot-rolled, unpickled sheet metal coils with an outer diameter of 700 to 2,200 mm. The cradle length (loading width) of 2,500 mm can also be utilised by inserting more than one sheet metal coil.
The design of the stillage allows sheet metal coils with surface temperatures of up to 600°C (at the side on which they are resting) to be loaded. However, the loaded vehicle may only be transported once the temperature at the skin of the sheet metal coils has reached 100°C.
The stillage, which weighs about 6 t, is removable. It is fixed in four sockets in the wagon floor by spigots. Without the stillage, the wagon is identical to the Salmmnps 706.
