Article: Sahlmmps-t 713
Bogie flat wagon with six wheelsets and loading cradles for coil transport. The wagon is especially suitable for carrying up to five heavy sheet metal coils that do not need to be protected from the weather.

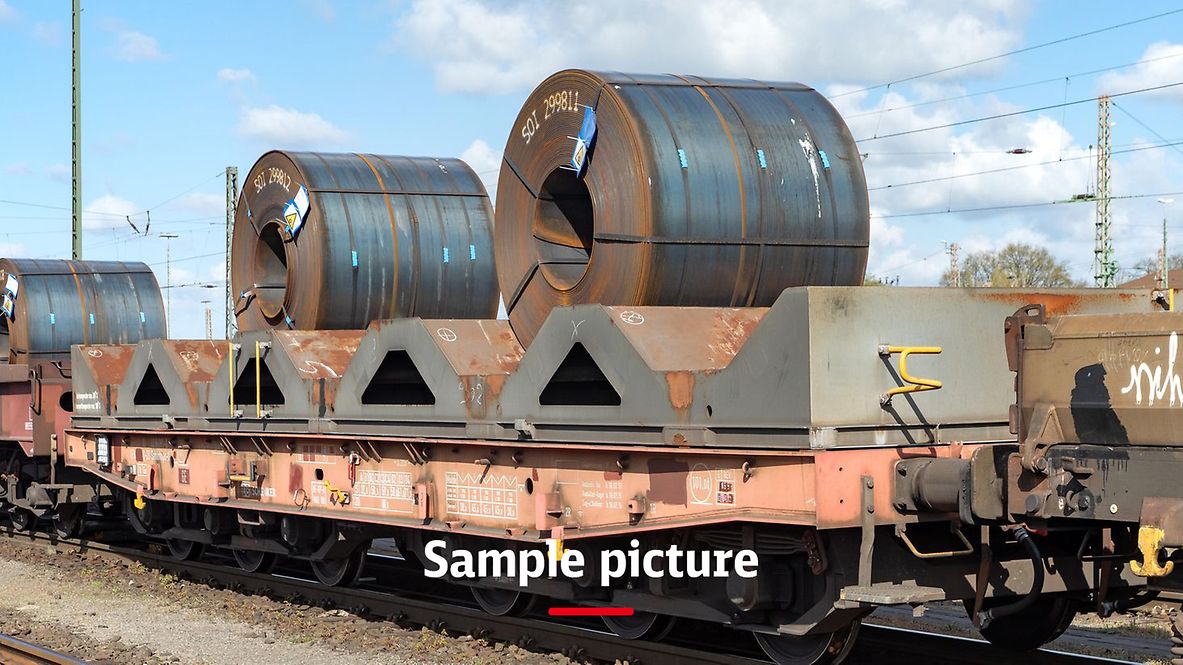

Please note: Type is similar to the wagon in the photo. For exact dimensions, please refer to the drawing and the data below.
Technical details
Loading width (mm) | 2,450 |
Average tare weight (kg) | 34,000 |
Maximum speed (km/h) | 120 |
International usability | RIV |
Smallest radius of curvature (m) | 75 |
First year of delivery or year of construction of the oldest wagons at this time | 2000 |
Parking brake | Without parking brake |
Brake type | KE-GP-A |
Number of brake cylinders (pcs.) | 2 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Automatic |
Buffer type | UIC 526-1, Category C |
Buffer head dimensions (mm) | 450 x 340 |
Automatic coupler | Prepared |
Individual data
Type of the control apparatus | KE Rd-63 KSLn, KE Rd-63 KSLn | KE Rd-63 KSLn control valve | KE Rd-63 KSLn load-proportional valves | KE Rd-63 KSLn in the underframe | KE Rd-63 KSLn in the bogie |
Load limits
Average tare weight 34.00 t
Without parking brake
A | B1 | B2 | C2 | C3 | C4 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|---|
S | 32.0 t | 32.0 t | 50.0 t | 50.0 t | 59.0 t | 59.0 t | 50.0 t | 61.0 t | 71.0 t |
120 |
Additional information:
The wagon has a removable stillage with safety equipment for coils and is mainly used to transport hot-rolled, unpickled steel coils with an outer diameter of 900 to 2,200 mm.
The stillage is fixed in four sockets in the floor of the wagon by spigots.
The design of the stillage allows hot coils with temperatures of up to 240°C to be loaded.
