Laaes 557

These wagons have one loading deck and have been specially developed for transporting tall vehicles, such as vans or light commercial vehicles, throughout Europe. Depending on the type, the wagons can be loaded with five or six vehicles.

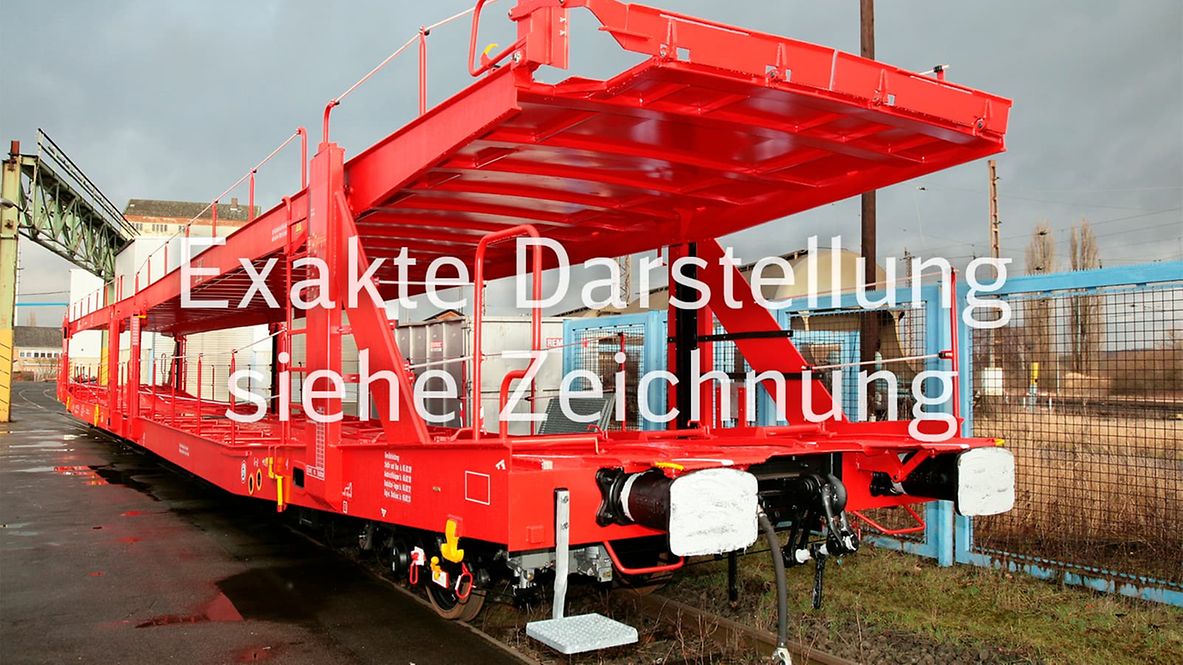

Please note: The type is similar to the wagon in the photo, but does not have an upper loading deck. For exact dimensions, please refer to the drawing and the data below.

Technical details

Loading length (mm)	30,000
Average tare weight (kg)	28,000
First year of delivery or year of construction of the oldest wagons at this time	1985
Conversion year	1996 (from Leks 558)
Parking brake	LL block
Permissible wheel load of the cargo (kg)	800
Smalles curve radius (m)	75

Individual data

Max. payload (kg)	24,000
Wheel scotches (total)	48
Overall height of the wheel scotches (mm)	130

Load limits

	A	B1	B2	C
S	24.0 t	24.0 t	24.0 t	24.0 t
120

All data provided without any guarantee of correctness or completeness.
