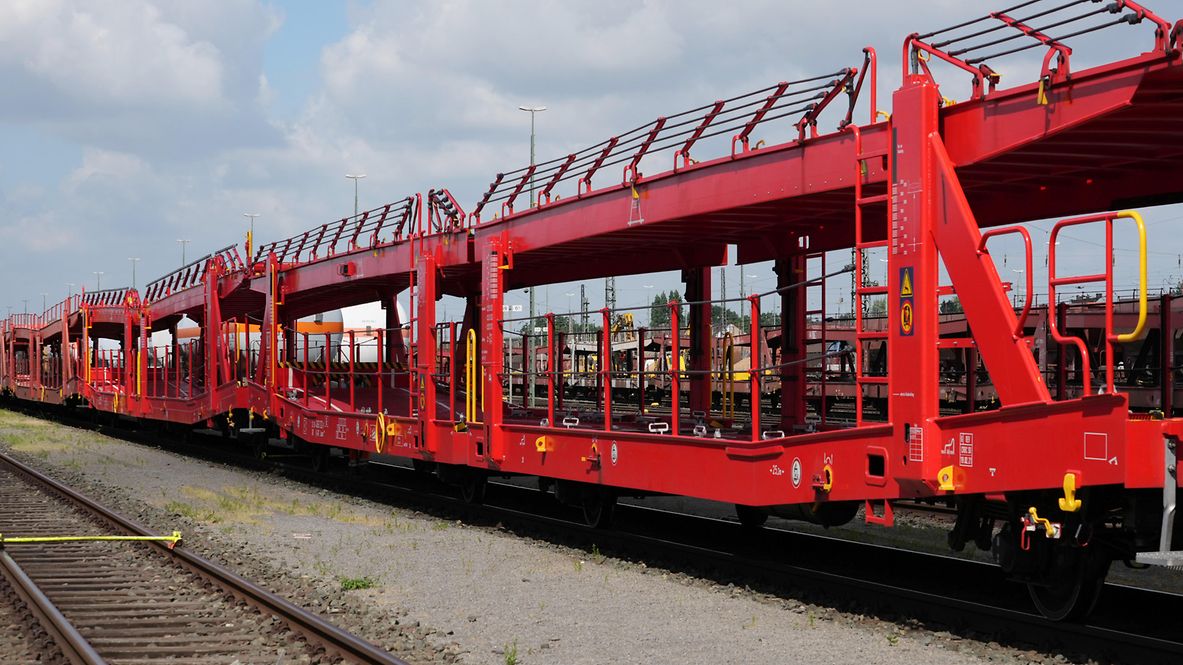

Article: Laaers 560

These wagons have two loading decks and are suitable for Europe-wide transport. They are used for the international transportation of passenger cars, SUVs and vans, and provide top flexibility due to a continuously adjustable upper loading deck. With a high load limit of 34 t, they are capable of carrying particularly heavy vehicles of the types mentioned.

So that transportation of a single type of product as well as of a mixed load is possible in the various loading gauges, the upper loading deck can be adjusted continuously with respect to the transport positions.

A modified load-securing system was developed to meet client requirements for optimised transport options for vehicles with low ground clearance.

Technical details

Upper loading length (mm)

30,550

Lower loading length (mm)

30,070

Average tare weight (kg)

29,600

First year of delivery or year of construction of the oldest wagons at this time

2007

Brake type

LL block

Max. Weight per passenger car (kg)

3,200

Smallest curve radius (m)

75

Individual data

Max. payload (kg)

34,000

Max. payload, lower loading deck (kg)

18,000

Max. payload, upper loading deck (kg)

18,000

Wheel scotches per loading deck

64

Load limits

A

B1

B2

C

S

34.0 t

34.0 t

34.0 t

34.0 t

120


All data provided without any guarantee of correctness or completeness.
