Article: Laaeffrs 561

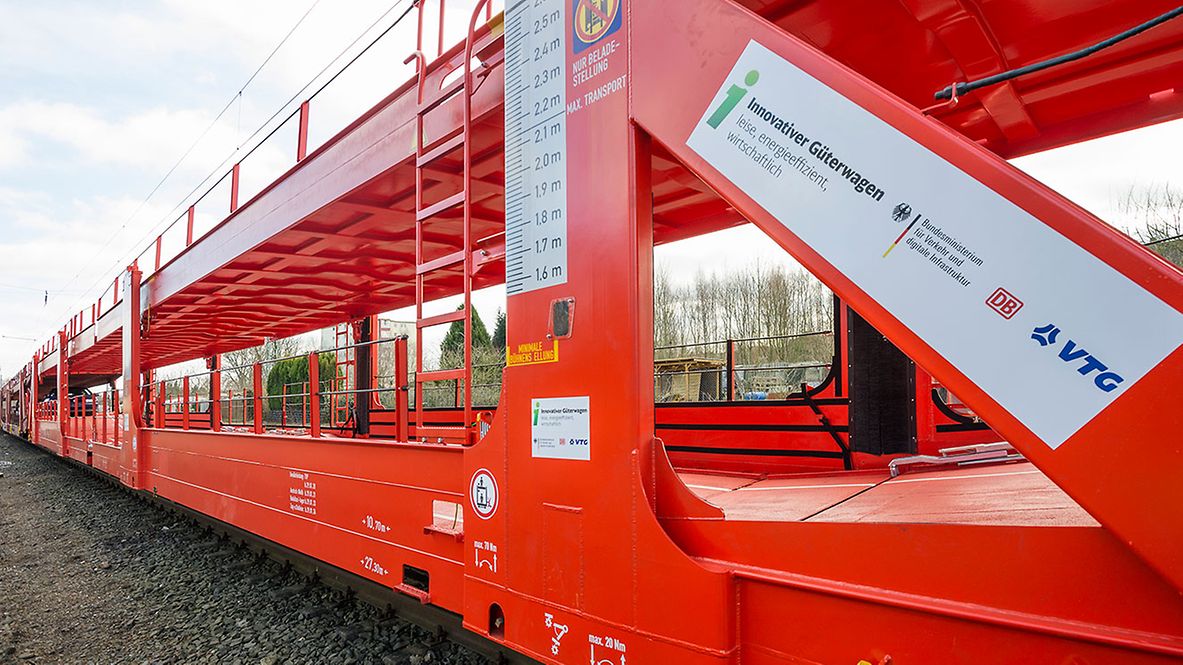

These wagons are particularly suitable for transporting large-volume passenger cars, SUVs and vans throughout Europe.

Its special geometry and flexible, adjustable elements make this car carrier wagon perfectly suited to transporting SUVs and vans efficiently, even with low clearances. With the high load limit of 35.5 t, particularly heavy vehicles can be transported.

So that transportation of a single type of product as well as of a mixed load is possible in the various loading gauges, the upper loading deck can be adjusted continuously with respect to the transport positions. Flexible elements on the lower loading deck as well as a special geometry for the upper loading deck also enable more efficient utilisation of the loading space for particularly tall passenger cars.

To secure the load, there are 32 wheel scotches on each of the upper and lower loading decks. Another special feature is improved occupational safety due to the folding railing on the upper loading deck.

Technical details

Loading length (mm)

32,080 (lower), 32,550 (upper)

Average tare weight (kg)

36,500

International usability

Yes

First year of delivery or year of construction of the oldest wagons at this time

2019

Brake type

K block

Smallest curve radius (m)

75

Individual data

Max. payload (kg)

35,500

Max. payload, lower loading deck (kg)

18,000

Max. payload, upper loading deck (kg)

18,000

Wheel scotches per loading deck

32

Overall height of the wheel scotches (mm)

110

Max. Weight per passenger car (kg)

2,800

Height of the folding railing (cm)

110

Load limit panel

A

B

C

D

S

27.5 t

35.5 t

35.5 t

35.5 t

120

0.0 t

0.0 t

0.0 t

0.0 t
