Article: Himrrs-tt 326
Two-part, permanently coupled freight wagon unit with two-part sliding walls with tarpaulin cover and a lockable partition wall for each single freight wagon.

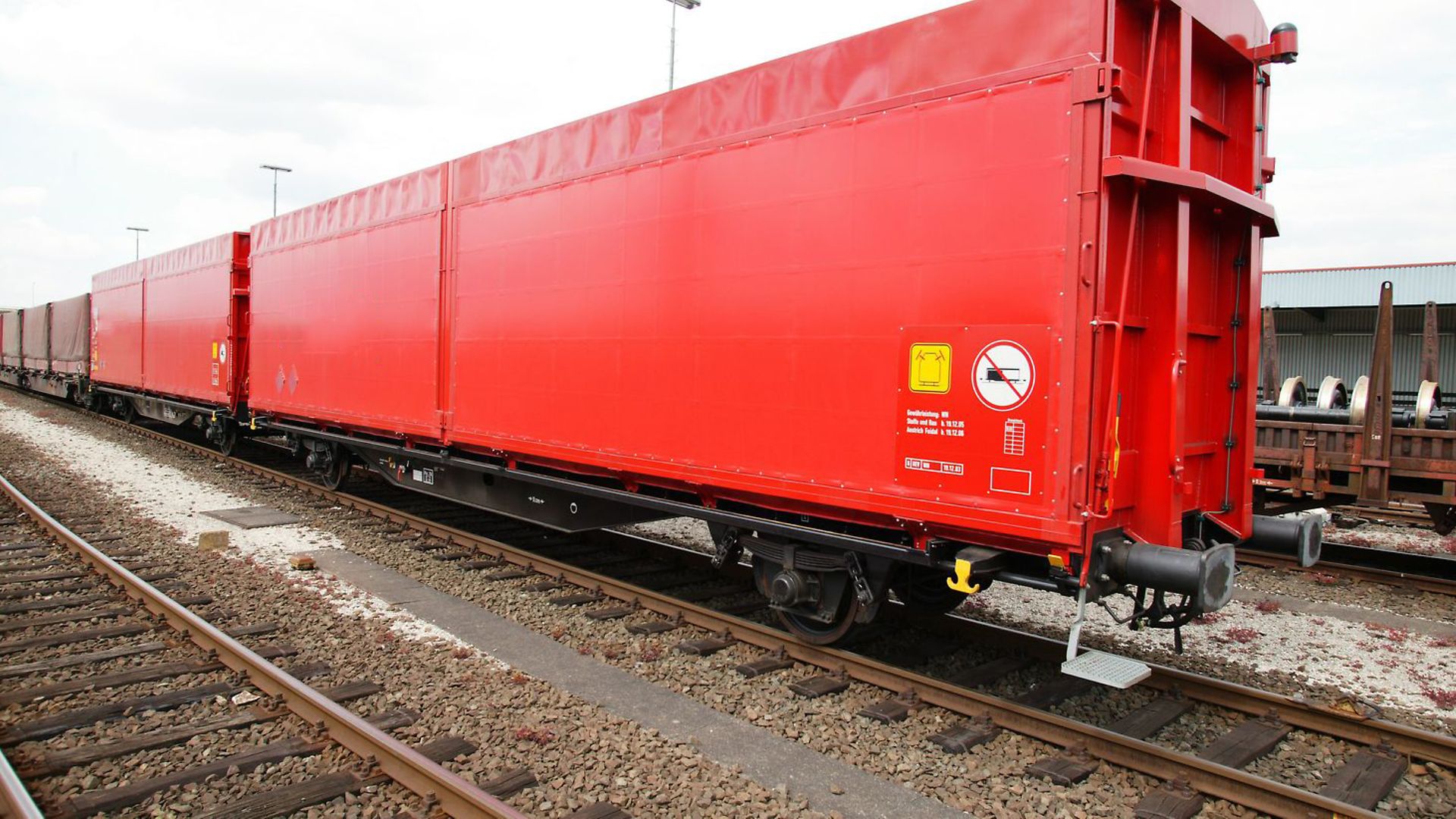

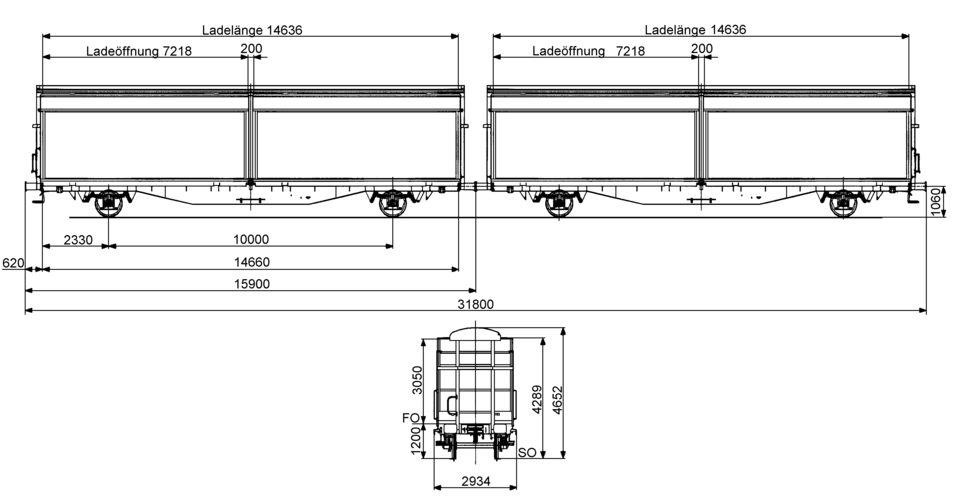

Please note: Type is similar to the wagon in the photo. For exact dimensions, please refer to the drawing and the data below.
Technical details
Loading width (mm) | 2,600 |
Loading height (mm) | 3,050 |
Loading area (m2) | 2 x 37.7 |
Loading space (m3) | 2 x 115.0 |
Average tare weight (kg) | 32,900 |
Maximum speed (km/h) | 120 |
Smallest radius of curvature (m) | 90 |
First year of delivery or year of construction of the oldest wagons at this time | 2003 |
Parking brake | Without parking brake |
Brake type | KE-GP-A |
Brake cylinder diameter (mm) | 300 |
Type of load-proportional braking | Automatic |
Automatic coupler | Prepared |
Distributor valve type | 2 x KE 2dSL-ALB/d63/1 |
Individual data
Side wall openings: width (mm) | 7,218 |
Side wall openings: height (mm) | 3,050 |
Running gear as per drawing | 2Fwg309.0.02.000.001 |
Loading length without partitions (mm) | 2 x 14,636 |
Loading length with partitions (mm) | 2 x 14,516 |
Clearance (mm) | 3,035 |
Number of brake cylinders per element (pcs.) | 1 |
Load limits
Tare weight > 32.5 t ≤ 33.0 t
Without parking brake
A | B | C | D | ||
|---|---|---|---|---|---|
S | 31.0 t | 39.0 t | 49.0 t | 57.0 t | |
120 |
Additional information:
The wagon unit consists of two permanently coupled Hbbins-tt 309, which cannot be separated during operation. The main brake pipe is connected at the fixed coupling point by a continuous, raised brake hose connection (without brake shut-off cocks and coupling heads).
The wagon unit is designed for transporting automotive parts in stillages. The unit is constructed according to reference profile G2 (EBO), but exceeds this reference profile in the exterior roof area. It is therefore not RIV-capable and can only be used on codified routes with profile P/C 400 and larger. An exemption exists for this in accordance with Section 22 of the EBO. Sidings must be checked for clearance before driving over them.The wagon unit has a sliding wall system that is guided at the top and runs on rollers at the bottom. During the opening and closing process, the wall is guided parallel to the wagon body. The locking system corresponds to that of the Hbbi(ll)ns 305/306. The actuating devices for the sliding walls are located on the end walls. The sliding walls have a lightweight design and consist of a frame made of steel sections, folded sheet metal and roof bows, as well as a tarpaulin cover.
To secure the load, each wagon unit has a lockable partition at one end of the wagon, which can be moved and locked up to 2 m from the end wall.
All data provided without any guarantee of correctness or completeness.
