Article: Falns(-z) 182
Open bulk freight wagons with bulk gravity unloading, mechanical flap-closing system and four wheelsets.A couple of benefits: opposite pairs of flaps are opened either from the wagon platform or from the bunker gantry using a long-handled carriage key. They swing out freely to the sides and are closed again individually when the wagon has passed through the bunker area.

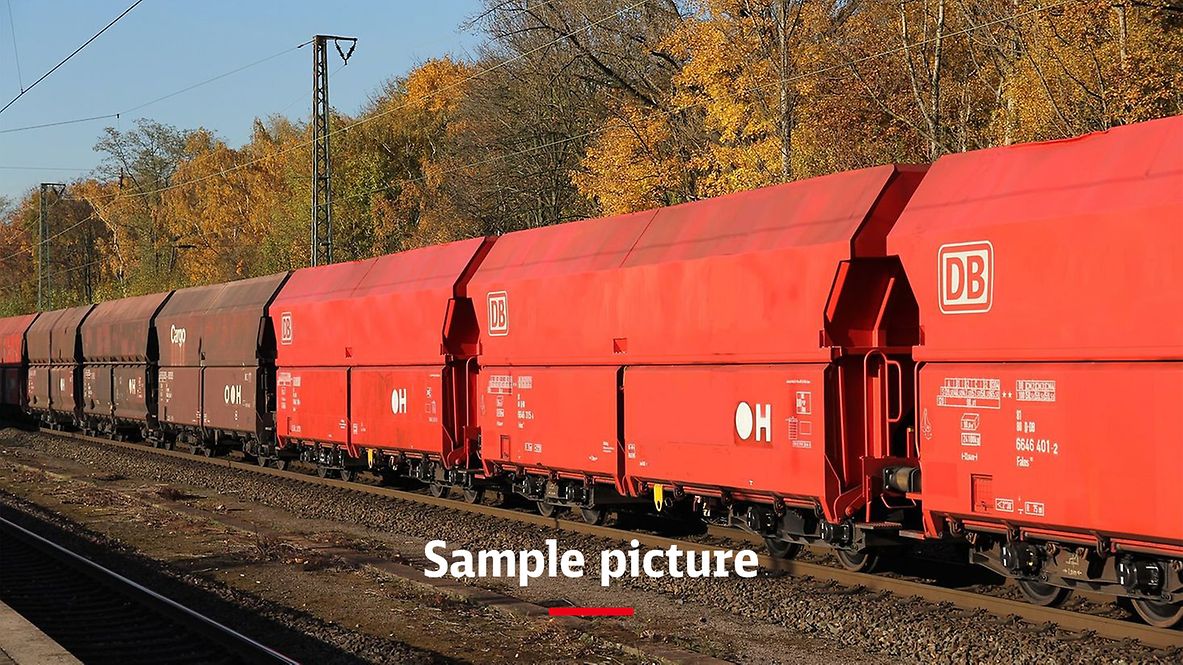

Please note: Type is similar to the wagon in the photo. For exact dimensions, please refer to the data below.
Technical details
Loading space (m3) | 85.0 |
Inside width of hopper (mm) | 1,856 |
Inside length of hopper (mm) | 11,594 |
Average tare weight (kg) | 24,450 |
Maximum speed (km/h) | 120 |
International usability | No |
Smallest radius of curvature (m) | 75 |
First year of delivery or year of construction of the oldest wagons at this time | 1981 |
Parking brake | With and without parking brake |
Brake type | KE-GP |
Number of brake cylinders (pcs.) | 1 |
Brake cylinder diameter (mm) | 406 |
Type of load-proportional braking | Two-stage, mechanical, to be changed over manually |
Buffer type: end force (kN) | 590 |
Buffer type: stroke (mm) | 105 |
Buffer head dimensions (mm) | 450 x 340 |
Automatic coupler | Prepared |
Distributor valve type | KE 1adSL |
Individual data
Side flap deflection – largest (mm) | 4,900 |
Side flap deflection – in support position (mm) | 4,100 |
Length of discharge opening (mm) | 4,950 |
Load limits
Tare weight > 24.0 t ≤ 24.5 t
With and without parking brake
A | B1 | B2 | C2 | D2 | D3 | D4 | ||
|---|---|---|---|---|---|---|---|---|
S | 38.0 t | 38.0 t | 47.5 t | 55.5 t | 55.5 t | 65.5 t | 65.5 t | |
120 |
DB | CM2 | CM3 | Cm4 |
|---|---|---|---|
100 | 55.5 t | 59.5 t | 59.5 t |
Additional information:
All data provided without any guarantee of correctness or completeness.
